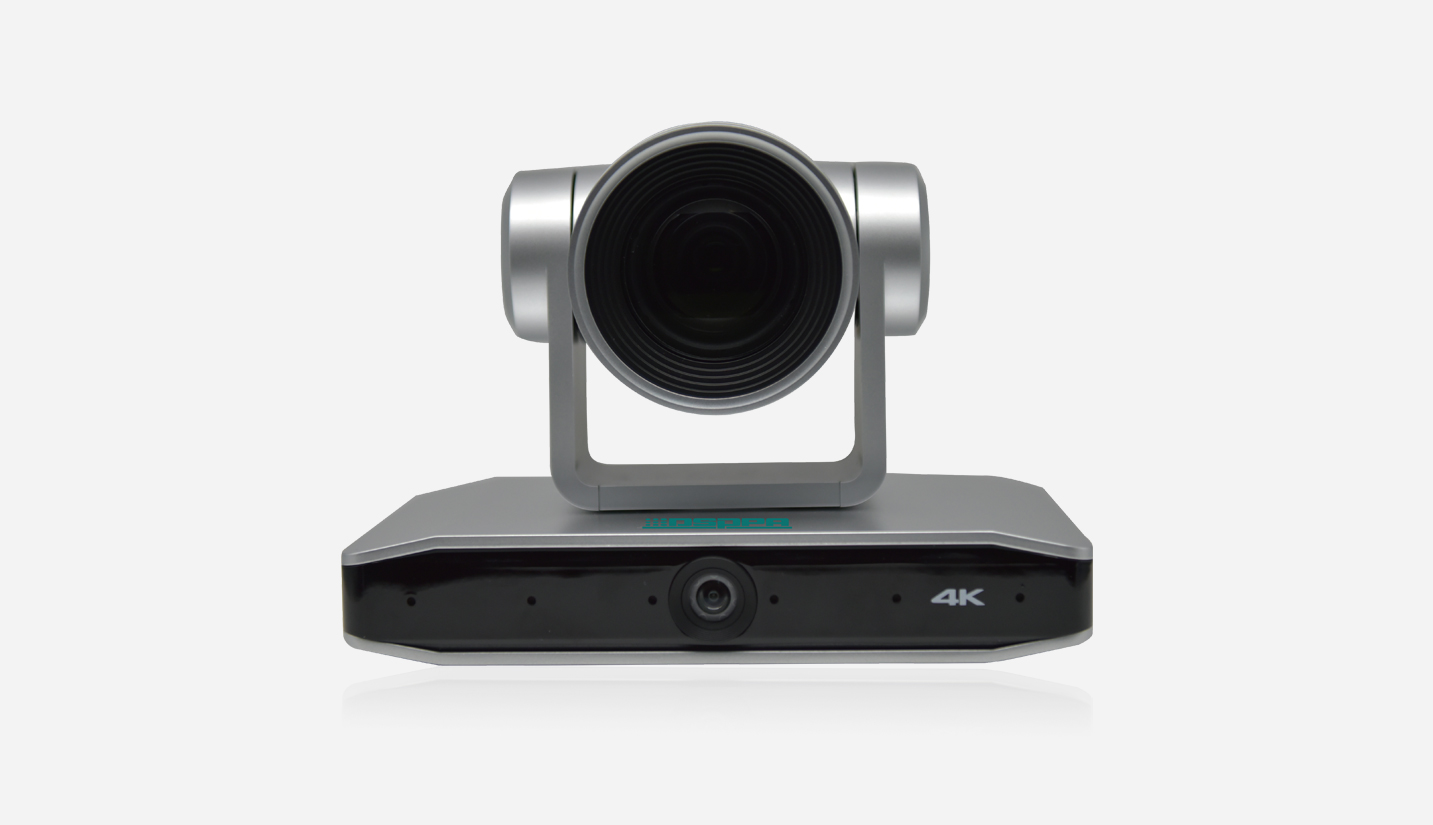

Digital Conference Tracking Camera - 翻译中... D7139

Camera Parameter

Optical Zoom

12X

Sensor

1/2.8 inch SONY CMOS sensor

Effective Pixels

8.42M megapixel 16:9

Frequency Response

60Hz-18kHz

Video Format

HDMI:

4KP30, 4KP25, 1080P30, 1080P25, 1080P29.97;

USB3.0:

Main stream: YUY2/NV12:

1920×1080/1280×720/1024×576/800×600/800×448/640×480/640×360/480×270/320×180@30/25/20/15/10/5fps;

MJPG/H264:

1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;

Secondary stream: YUY2/NV12:

1920×1080/1280×720/1024×576/800×600/800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps;MJPG/H264:

1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;

Close-up Parameters

12X

Viewing Angle

Horizontal: 7.6°(N)~80.5°(W)

Iris Value

F1.8 ~F3.6

Digital Zoom

15X

Minimum Illumination

0.5Lux(F1.8, AGC ON)

DNR

2D&3D DNR

White Balance

Auto / Manual/ One Push/ Specified Temperature

Focus

Auto/Manual/One Push Focus

Exposure Mode

Auto/Manual/Shutter priority/Aperture priority/brightness priority

Aperture

F1.8 ~F11, CLOSE

Shutter Speed

1/25~1/20000

BLC

ON/OFF

WDR

OFF/ 1~8

Video Adjustment

Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR

>50dB

Panoramic lens

Fixed

Viewing Angle

110.2°\101.8°\69.5°(D\H\V)

Aperture

F2.0±5%

Focal Length

F=1.89mm

Interface Parameter

Video Interfaces

HDMI, LAN(Support POE+), USB3.0, LINE-IN, RS232-IN, DC12V Power Supply, Power Switch

Video Output

HDMI, LAN, USB3.0

Video Compression

Format

LAN: H.264, H.265

USB 3.0: MJPG, H.264, YUY2, NV12

Audio Input

Double track 3.5mm linear input;

Audio Compression

Format

AAC

LAN Jack

10M/100M adaptive Ethernet port, support POE+ power supply, support audio and video output

Network Protocols

RTSP/RTMP,ONVIF,GBT28181, VISCA OVER IP, IP VISCA、RTMPS, SRT, Support remote upgrade, remote restart, remote reset

Control Jacks

RS232-IN

Serial Port

Communication Protocols

VISCA/Pelco-D/Pelco-P;

Support Baudrate: 115200/38400/9600/4800/2400

USB Communication

Protocol

UVC (Video Communication Protocol) , UAC (Audio Communication Protocol)

Power Supply

HEC3800 Outlet (DC12V)

Power Adapter

AC110V~AC220V to DC12V/2A

Input Voltage

DC12V±10%

Input

≤1.1A

Consumption

≤13W

PTZ Parameter

Pan Move

-110°~+110°

Tilt Move

-30°~+30° °

Pan Speed

0.1°/s~100°/s

Tilt Speed

0.1°/s~70°/s

Preset Speed

Pan: 78.8°/s, Tilt: 31.7°/s

Preset Quantity

Up to 255 preset (10 via remote control)

Other Parameter

Storage Temperature

-10℃~+60℃

Storage Humidity

20%~95%

Working Temperature

-10℃~+50℃

Working Humidity

20%~80%

Dimension

220(L)mm*136mm(W)*159mm(H)

Weight

About 1.7kg

Environment

Indoors

AI Function

Auto Framing

Built-in high speed processor and face detection algorithm, automatically detect participants and provide ideal framing. The farthest framing distance can reach 6~7 meters

Intelligent voice positioning and tracking

Built-in 6 omnidirectional microphone arrays, intelligent sound source positioning algorithm, real-time positioning of the speaker's position, voice tracking can be set to on/off. The maximum pick-up distance can reach 6~7 meters
