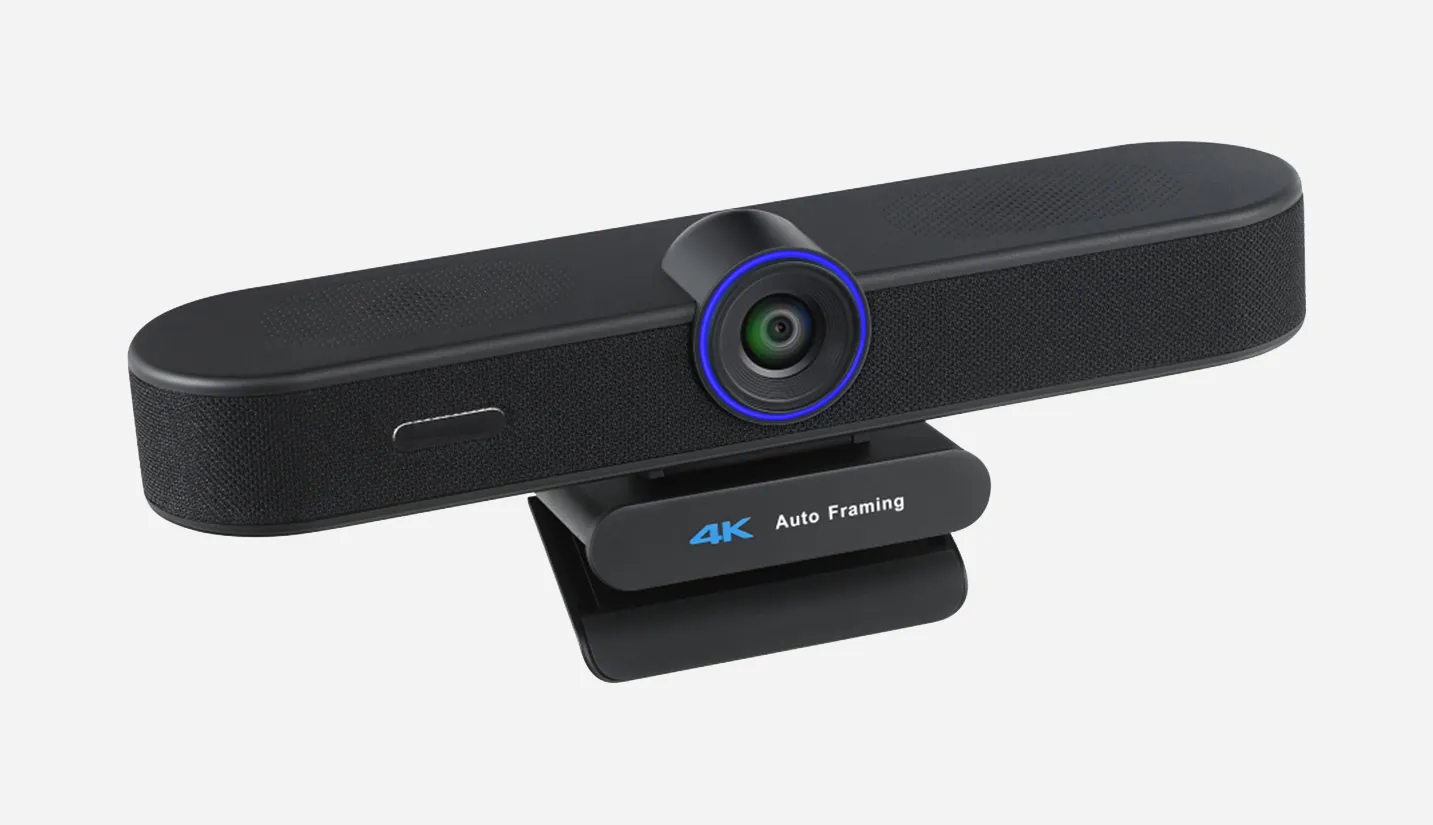

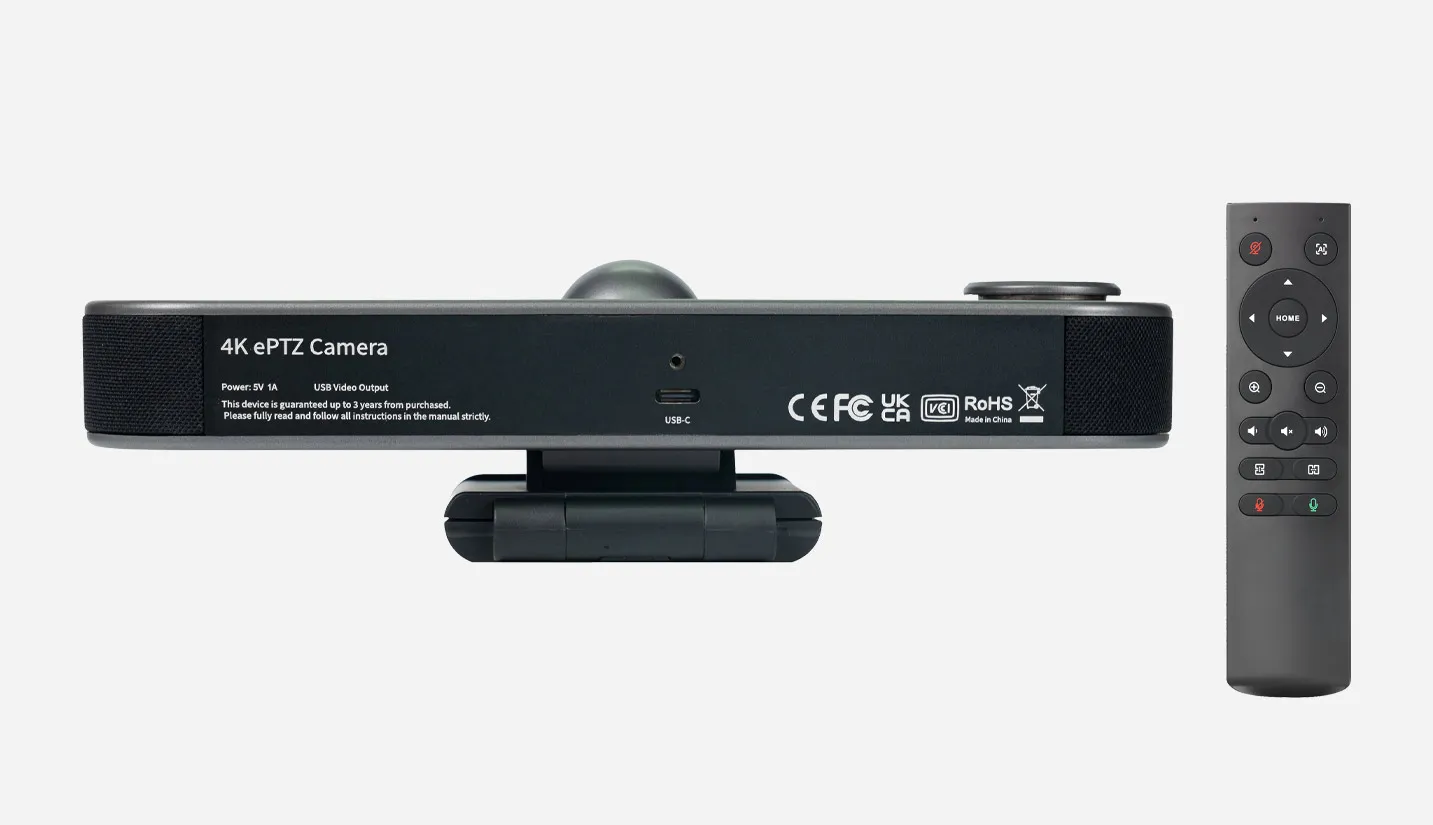

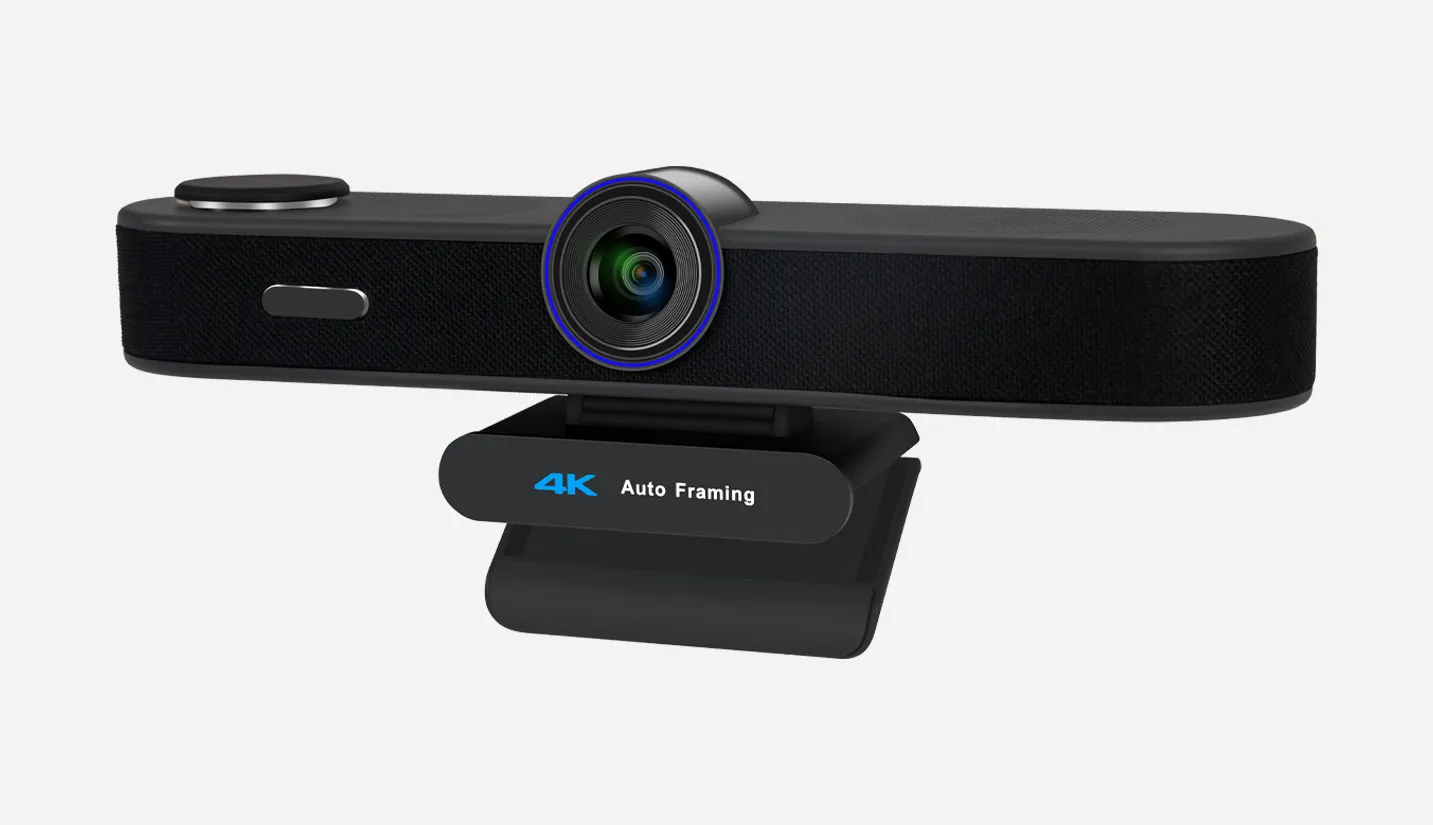

Model | D7722 |
Image Sensor | 1/2.8" IMX415 |
Effective Pixels | 8.29 megapixels |
Video Signal | 3840 × 2160@30fps, 2560 × 1440@30fps, 1920 × 1080@30fps |
Lens & Aperture | Fixed focus lens |
Optical Zoom | / |
Digital Zoom | 5x |
Zoom Speed | Fixed |
Focal Length | / |
Horizontal Field of View (H) | 109.9°(H) |
Vertical Field of View (V) | 74.6°(V) |
Diagonal Field of View (D) | 118.8°(D) |
AI Support | Supported |
AI Modes | Auto Framing; Speaker Tracking |
Minimum Illumination | 0.1 lux |
Shutter Speed | 1/25s–1/10000s |
White Balance | Auto / Manual / Indoor / Outdoor / Specific Color Temperature / One-Push |
Backlight Compensation | Supported |
Digital Noise Reduction | 2D & 3D DNR |
Signal-to-Noise Ratio | >50dB |
Exposure | Auto / Manual |
Focus | Auto / Manual |
Video Encoding Format | YUV |
Pan | Not Supported |
Tilt | Not Supported |
Auto Flip | Not Supported |
Image Freeze | Not Supported |
PoE (Power over Ethernet) | Not Supported |
Preset Position | Not Supported |
Preset Accuracy | Not Supported |
Preset Recall Speed | Not Supported |
Network | |
Video Compression | MJPG, H.264, H.265 |
Video Stream | / |
Main Stream Resolution | / |
Sub Stream Resolution | / |
Bit Rate | / |
Bit Rate Type | / |
Frequency | / |
Frame Rate | / |
Audio Compression | / |
Audio Bit Rate | / |
Network Protocol | / |
USB | |
Supported Operating System | Windows / macOS |
Color Space Compression | YUV, MJPG, H.264, H.265, NV12 |
Video Format | 3840 × 2160@30fps, 2560 × 1440@30fps, 1920 × 1080@30fps, etc. |
USB Video Communication Protocol | UVC (USB Video Class) |
UVC PTZ Control | Not Supported |
I/O Interface | |
HD Output | USB 3.0 |
Network Interface | / |
USB Interface | USB 3.0 |
Audio Interface | / |
Communication Interface | / |
SD Card Slot | / |
Reset Button | / |
Power Interface | USB 3.0 |
Audio Parameters | |
Built-in Microphone | 4 |
Pickup Range | 5 m |
Built-in Speaker | 1 |
General | |
Input Voltage | 5 V |
Input Current | 1 A |
Operating Temperature | 0℃～40℃ |
Operating Humidity | 20%–80% RH |
Power Consumption | 5W |
Product Dimensions | 211 × 58 × 50 mm |
Package Dimensions | 258 × 142 × 80 mm |
Net Weight | 0.21 kg |
Gross Weight | 0.55 kg |
