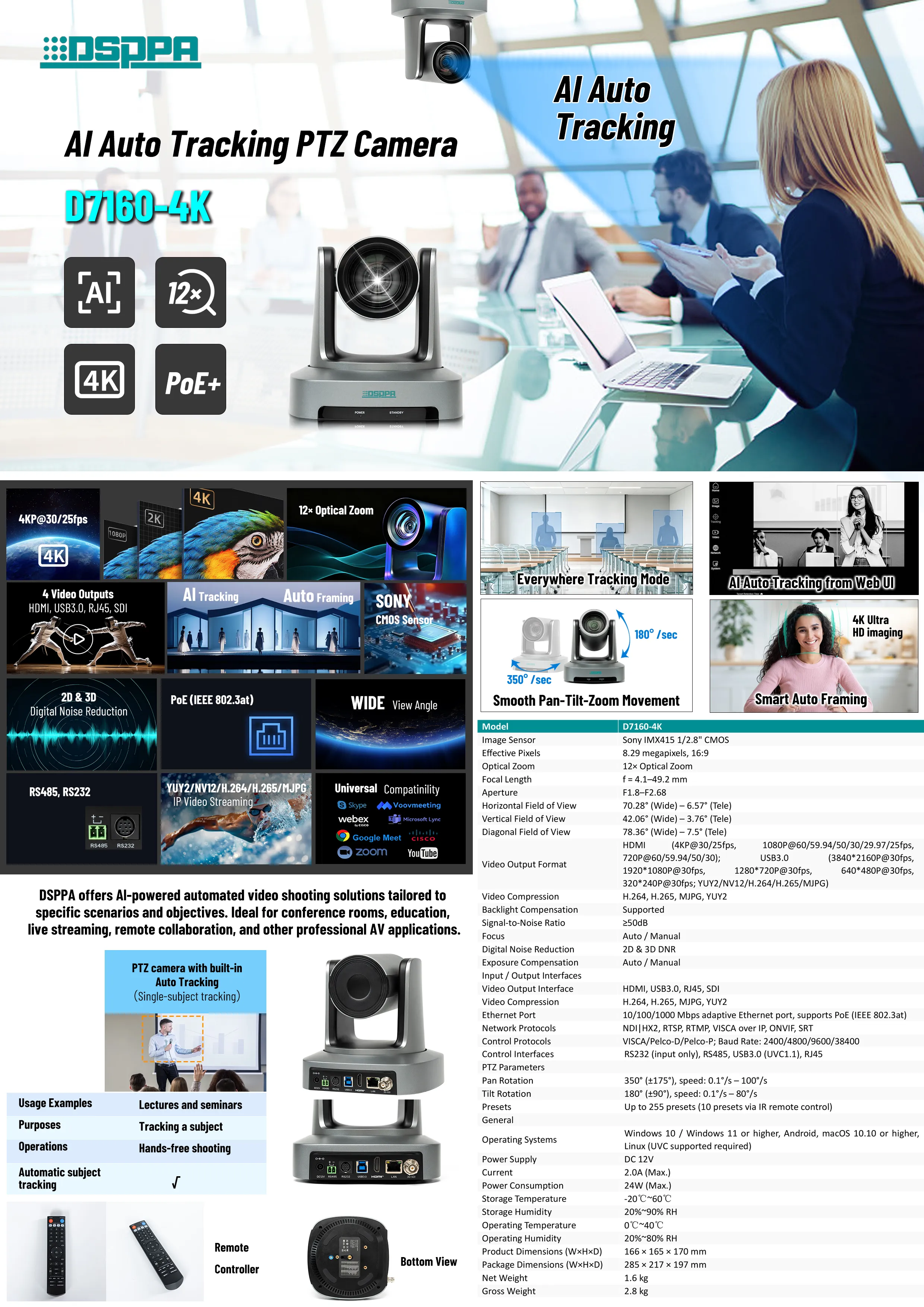

Model | D7160-4K |
Image Sensor | Sony IMX415 1/2.8" CMOS |
Effective Pixels | 8.29 megapixels, 16:9 |
Optical Zoom | 12× Optical Zoom |
Focal Length | f = 4.1–49.2 mm |
Aperture | F1.8–F2.68 |
Horizontal Field of View | 70.28° (Wide) – 6.57° (Tele) |
Vertical Field of View | 42.06° (Wide) – 3.76° (Tele) |
Diagonal Field of View | 78.36° (Wide) – 7.5° (Tele) |
Video Output Format | HDMI (4KP@30/25fps, 1080P@60/59.94/50/30/29.97/25fps, 720P@60/59.94/50/30); USB3.0 (3840*2160P@30fps, 1920*1080P@30fps, 1280*720P@30fps, 640*480P@30fps, 320*240P@30fps; YUY2/NV12/H.264/H.265/MJPG) |
Video Compression | H.264, H.265, MJPG, YUY2 |
Backlight Compensation | Supported |
Signal-to-Noise Ratio | ≥50dB |
Focus | Auto / Manual |
Digital Noise Reduction | 2D & 3D DNR |
Exposure Compensation | Auto / Manual |
Input / Output Interfaces | |
Video Output Interface | HDMI, USB3.0, RJ45, SDI |
Video Compression | H.264, H.265, MJPG, YUY2 |
Ethernet Port | 10/100/1000 Mbps adaptive Ethernet port, supports PoE (IEEE 802.3at) |
Network Protocols | NDI|HX2, RTSP, RTMP, VISCA over IP, ONVIF, SRT |
Control Protocols | VISCA/Pelco-D/Pelco-P; Baud Rate: 2400/4800/9600/38400 |
Control Interfaces | RS232 (input only), RS485, USB3.0 (UVC1.1), RJ45 |
PTZ Parameters | |
Pan Rotation | 350° (±175°), speed: 0.1°/s – 100°/s |
Tilt Rotation | 180° (±90°), speed: 0.1°/s – 80°/s |
Presets | Up to 255 presets (10 presets via IR remote control) |
General | |
Operating Systems | Windows 10 / Windows 11 or higher, Android, macOS 10.10 or higher, Linux (UVC supported required) |
Power Supply | DC 12V |
Current | 2.0A (Max.) |
Power Consumption | 24W (Max.) |
Storage Temperature | -20℃~60℃ |
Storage Humidity | 20%~90% RH |
Operating Temperature | 0℃~40℃ |
Operating Humidity | 20%~80% RH |
Product Dimensions (W×H×D) | 166 × 165 × 170 mm |
Package Dimensions (W×H×D) | 285 × 217 × 197 mm |
Net Weight | 1.6 kg |
Gross Weight | 2.8 kg |
