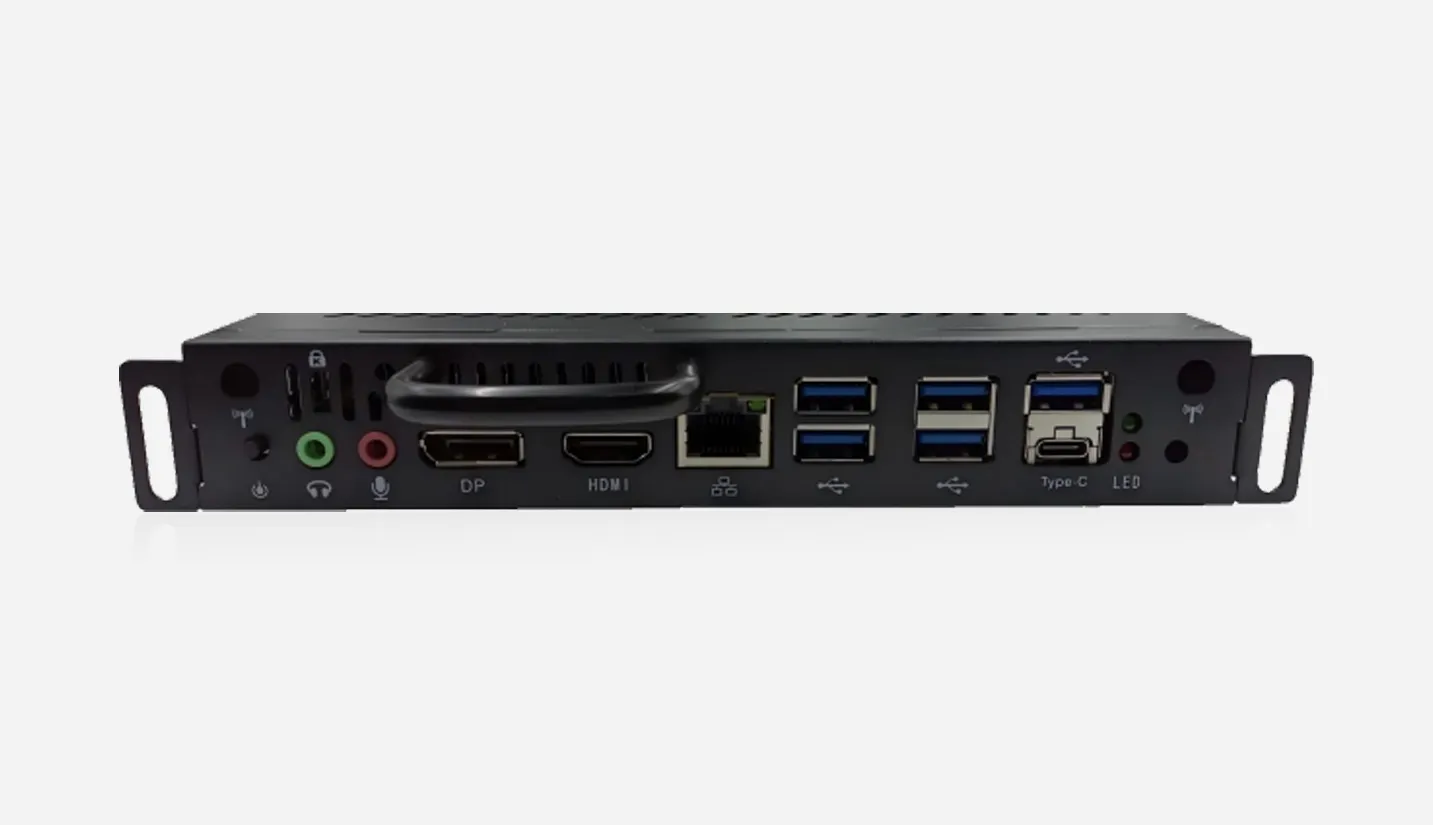

.webp "ops computer module dcp 87p3 (1)")
Model | DCP-87P4 | |
Processor | Supports Intel® 10th Gen Core™ i5-1035G1 processors | |
BIOS | AMI BIOS supports write protection, diskless boot, Wake-on-LAN, automatic power-on, scheduled startup, watchdog timer, remote power on/off, intelligent device detection, and TPM 2.0. | |
Memory | Capacity | 2 × SO- DI MM, DDR4 3200 MHz Max32GB |
Storage | Interfaces | 1 × SATA interface (optional, for 2.5" HDD / SSD) 1 × M.2 Key-M1, supports SATA3 and PCIE×4 NVMe SSD (2280) 1 × M.2 Key-M2, supports PCIE×4 NVMe SSD only (2280) |
Display (I/O Graphics Output) | Intel® Iris® Xe Graphics HDMI: up to 4096 × 2304 @ 60Hz DisplayPort (DP): up to 4096 × 2304 @ 60Hz VGA output (optional for 42mm OPS chassis) | |
OPS Display Output | HDMI 2.0: up to 4096 × 2304 @ 60Hz | |
Network | Wired | 1 × RTL8111H Gigabit Ethernet (onboard RJ45) |
Wireless | 1 × M.2 Key-E slot (for Wi-Fi + Bluetooth module, supports CNVi protocol, WiFi 6) | |
I / O | USB | 3 × USB3.0 2 × USB2.0 1 × Type-C |
LAN | 1 × RJ45 | |
Interface | 1 × DC power input 1 × OPS 80-pin connector | |
LED | 1 × POWER LED 1× HDD LED | |
Button | 1 × Power button 1 × Reset button (short press: restart / long press: clear CMOS) 1 × Ghost button (one-key system restore) | |
Audio | 1 × LINE-OUT & 1 × MIC-IN | |
Power | Input | DC 12 ~ 19V |
Watchdog | Function | System auto-restart on system failure |
Interval | 1 ~ 65535 sec | |
Product Dimensions | 180 ( L) × 195 (W) ×30( H) mm | |
Operating System | Version | windows10 / windows11/ Linux |
Operating Environment | Temperature | Operating: 0°C ~ 60°C ; Storage: -20°C ~ 75°C |
Humidity | 0% ~ 90%, non-condensing | |
