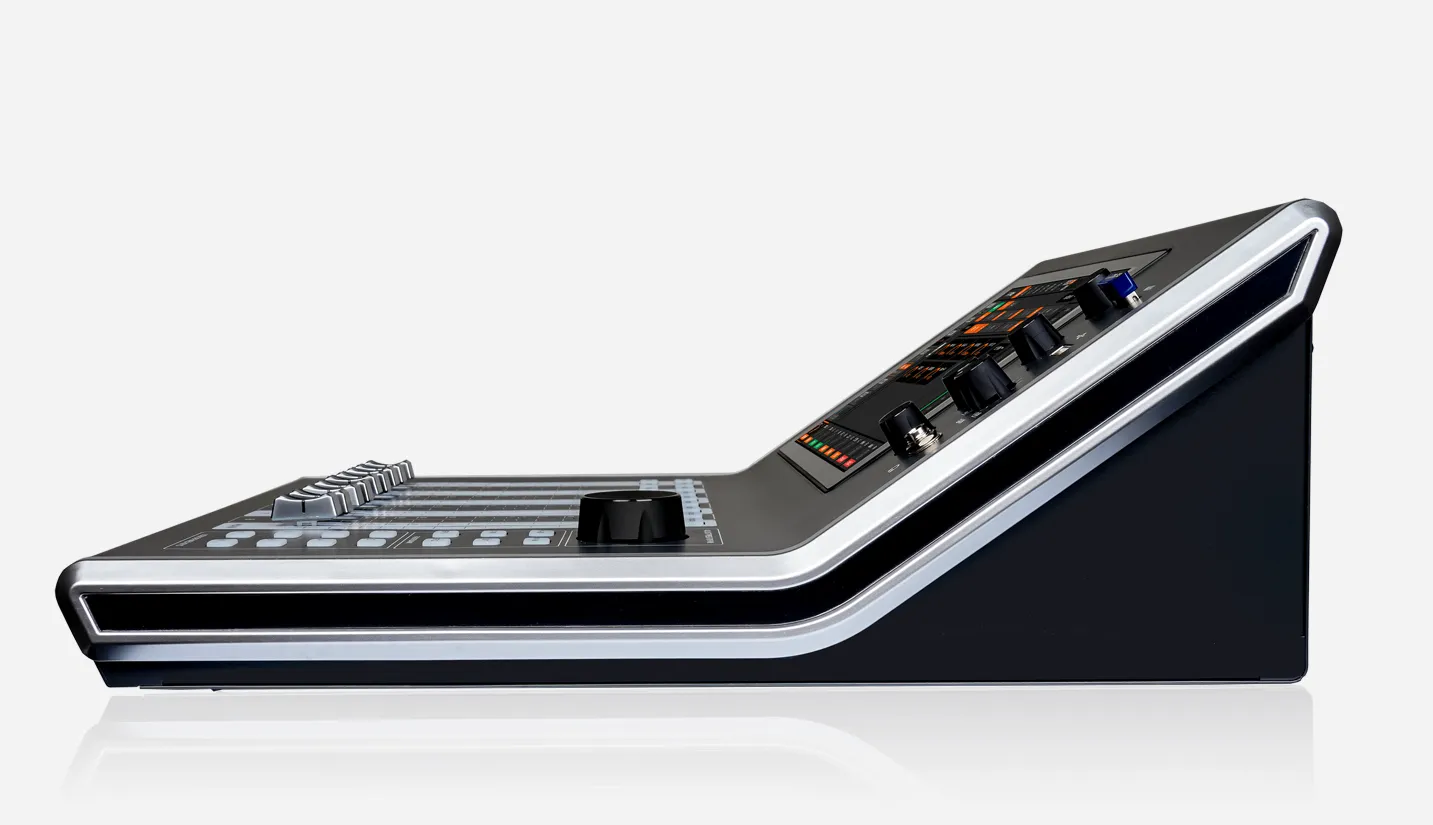

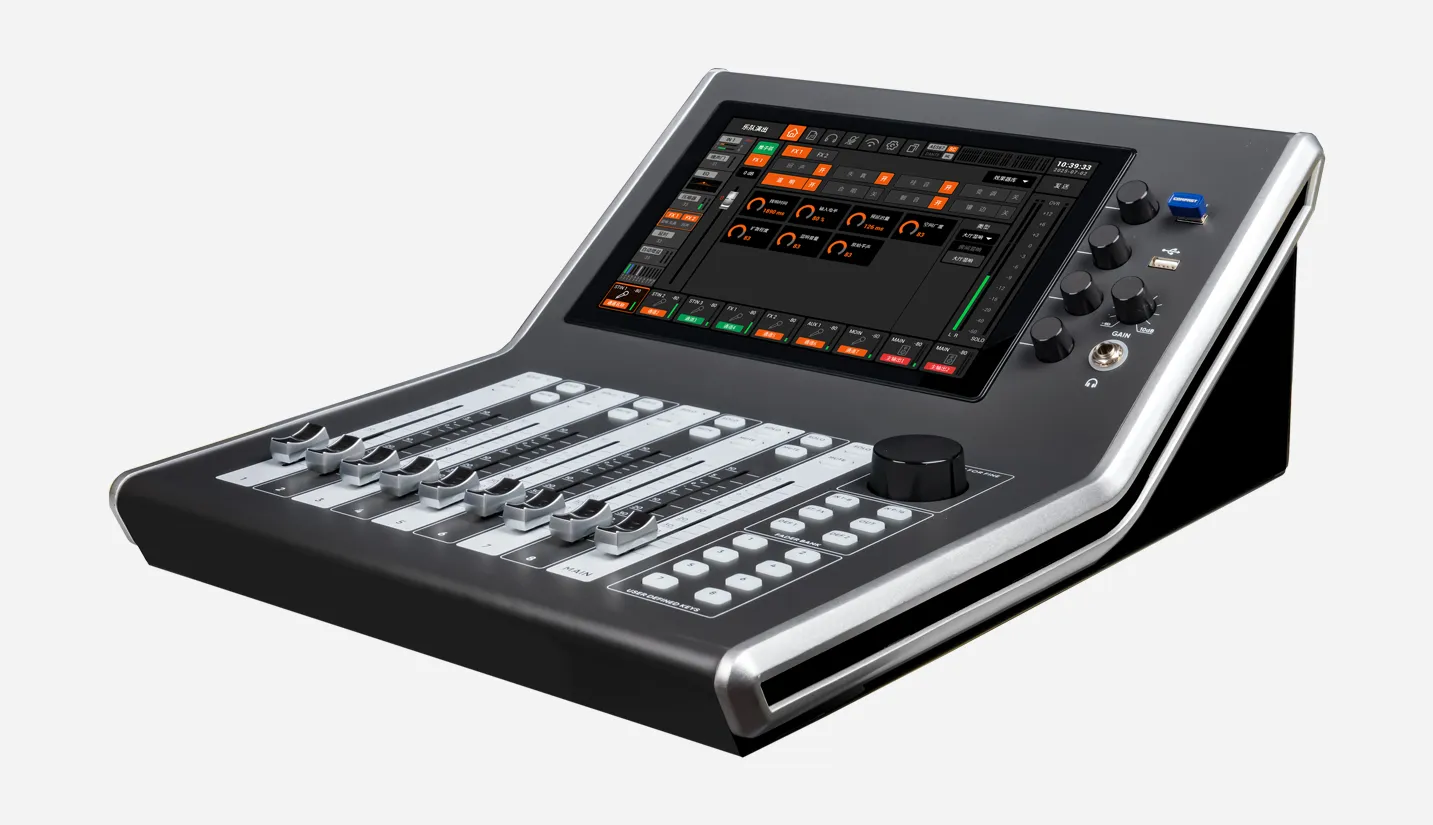

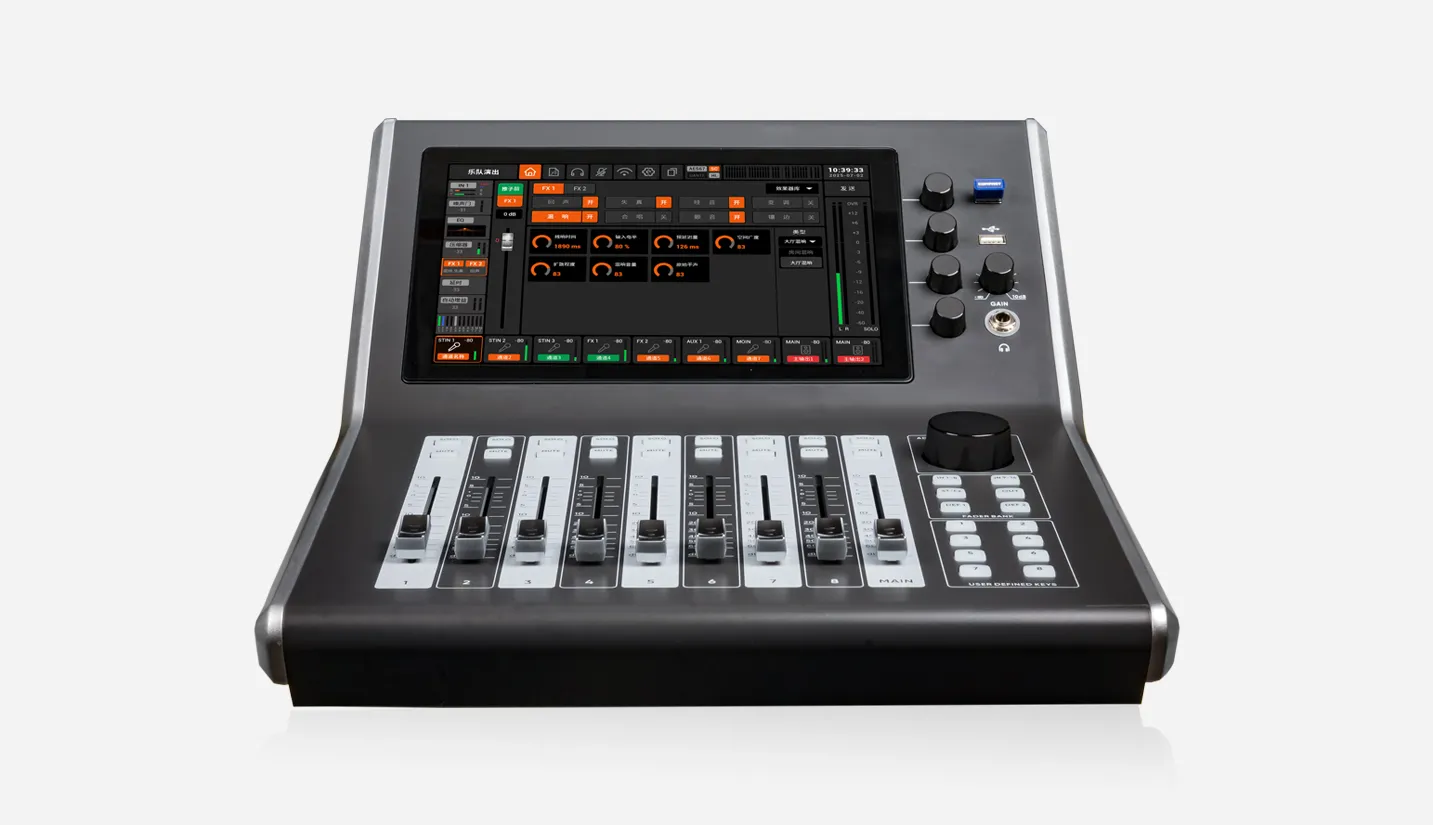

20-Channel Professional Digital Mixing Console - 翻译中... CM1620

Processing Channels

Input Processing Channels

16 Mono Input Channels + 3 Stereo Input Channels

Output Processing Channels

16 Mono Mix Buses, 2FX Send Buses, 2 Mono Matrix Output Buses, 1 Stereo Main Output Bus

Internal Effects

2 Mono FX Buses, 8 Effects (Reverb, Echo, Chorus, Wah, Tremolo, Distortion, Pitch Shift, and Flanger) for Flexible Application

GEQ

31-band GEQ Modules Available on: 6 Mono AUX Buses, Main Output Bus

Noise Gate

Threshold:-100 dBu to-20 dBu

Attack Time: 3 ms to 100 ms

Hold Time: 0 ms to 2000 ms

Release Time: 2×,4×,6×, 8×, 16×, or 32× Attack Time (Coefficient-based Multiplier)

Depth Range:-∞ dB to 0dB

Operating Modes: Standard Noise Gate, Sidechain Ducking

Compressor / Limiter

Threshold:-54 dBu to 0 dBu

Attack Time: 3 ms to 100 ms

Hold Time: 0 ms to 2000 ms

Release Time: 2×, 4×, 6×,8×, 16×, or 32× Attack Time (Coefficient-based Multiplier)

Ratio: 1.0:1:~∞ :1

Soft Knee: 0dB to 20 dB

Gain:0dBto +18 dB

Sidechain Compression Function

Auto Gain (Automatic Leveling)

Threshold:-48 dBu to +26 dBu

Attack Time: 5 ms to 500 ms

Release Time: 5 ms to 500 ms

Ratio: 1.0to 6.0

Target Threshold: -25 dBu to 0 dBu

Equalization

Input Channels: 4-band , Output Busses: 4-band, Frequency Range: 20 Hz - 20 kHz

Q Range: 0.404 to 18.031,

Filter Types per Band: Parametric, High-Shelf, Low-Shelf, Low-Pass Filter (LPF)

Gain:-18.0dB to +18.0dB

Filters

High-Pass Filter (HPF): 20 Hz to 600 Hz

Low-Pass Filter (LPF): 100 Hz to 20 kHz

Delay

0 ms to 1000 ms

Phase

Normal / Invert

RTA

EQ/GEQ RTA Display: Real-time31-band Frequency Spectrum Analyzer

Scene Files

Capacity: 100 Scenes

Effect Library Files

Up to 100 Groups Storable

Signal Processing

Processing Architecture: 40-bit Floating-point, Sample Rate: 48 kHz

A/D Conversion

Resolution: 24-bit, Sample Rate: 192 kHz, Dynamic Range: 115 dB

D/A conversion

Resolution: 24-bit, Sample Rate: 192 kHz, Dynamic Range: 123 dB

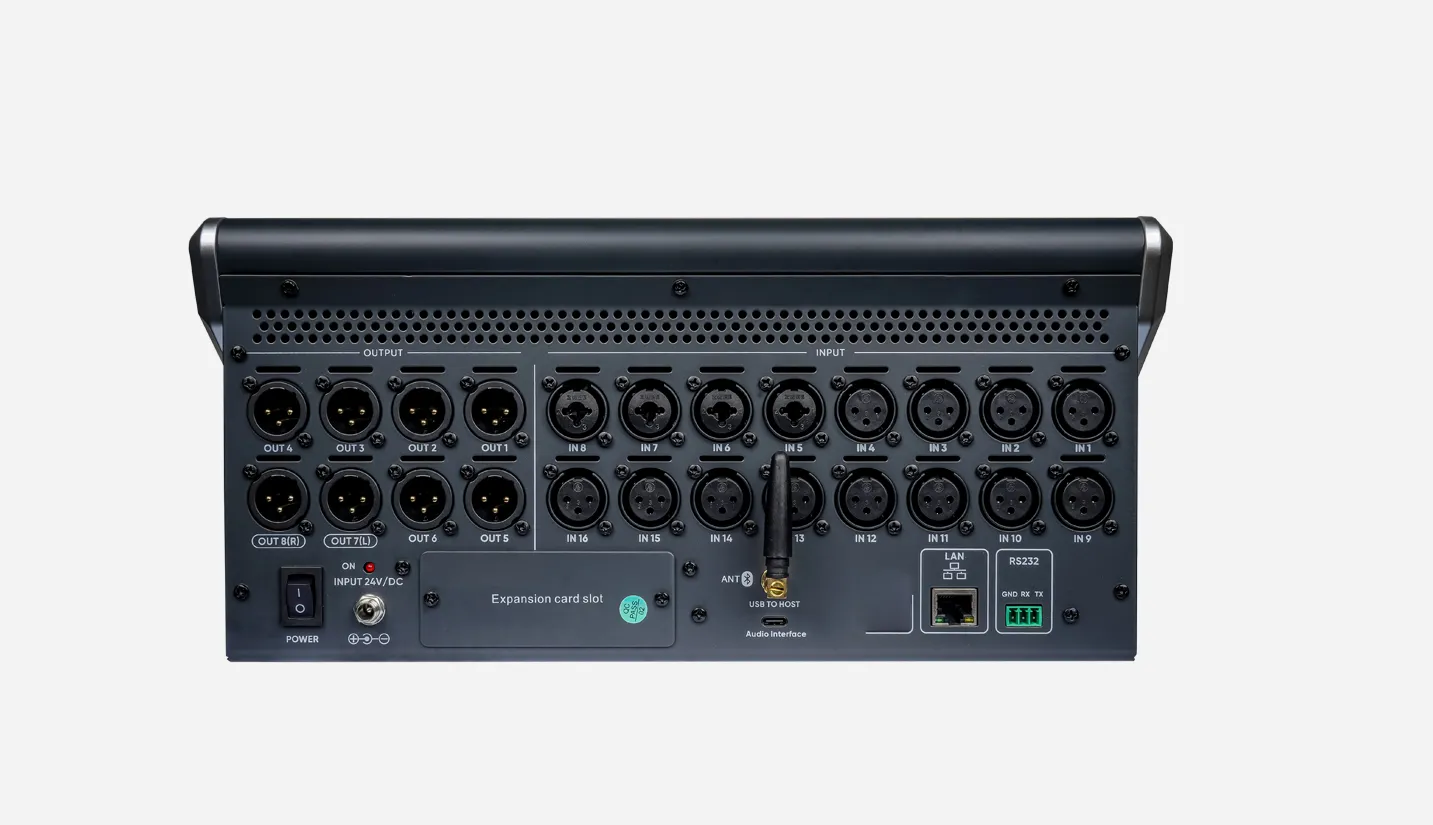

Connectors

Mic/Line Inputs XLR Interface

16 × XLR Analog Inputs with Preamps (includes 4 Combo XLR/TRS Jacks)

Connection: Balanced

Outputs

8 × XLR Balanced Outputs

Headphone Output

1 × Stereo TRS jack

USB Audio Interface

Rear Panel USB Port, 2-in/2-out, Sample Rate: 48 kHz

Additional USB

Front Panel: 2 × USB-A ports, Functions: Connect USB drives for stereo playback/recording (sup-ports MP3, WAV, FLAC); Firmware Updates; Import/Export Scene & FX Libraries; Connect External USB WiFi Module.

LAN

RJ-45 Ethernet Port for Wired Network Control

Input Specifications

(IN1-16)

Impedance

Balanced: 10 kΩ, Unbalanced: 5 kΩ

Frequency Response

20Hz-20KHz (+/-0.5dB)

Max Input Level

+22dBu

Phantom Power

+48V (IN1 to IN16)

Gain Range

Analog Gain: 0dB to +63 dB

Digital Gain:-24 dB to +24dB

S/N Ratio

-113 dB (gain=0 dB,A-weighted)

Dynamic Range

-114 dB (gain=0 dB,A-weighted)

Output Specifications

(OUT1-8)

THD+N

0.005% (gain=0 dBu and out=0 dB gain,un-weighted)

Frequency Response

20Hz-20kHz(+/-0.5dB)

Max. Output Level

+22dBu

Output Impedance

<100Ω

Crosstalk

-100dB@1kHz

Noise Floor

-86 dBu (gain=0 dB)

Monitor / Headphone Specificatons

Output Imepdance

＜50Ω

Max. Output Level

+20dBu

Noise Floor

-73dBu (Gain=0dB)

Digital I / O

Digital I / O

Support Bluetooth and 2×2 USB Sound Card

USB Playback/Recording:

Formats: MP3, WAV, FLAC (playback); WAV (recording), USB Standard: 3.0

Expansion

16×16 Sound Card(Standard Configuration) /16×16 AES67/ HMLINK/16×16 Dante Card

General Specifications

Channel Separation

-111dB

Display

10.1" Touchscreen (1280 × 800 px)

Faders

9 × 100mm Motorized Touch-sensitive Faders

System

Linux-Based

Network

Wired Network Port, External WIFI Module;

Supports Software Linkage Control

Hardware

Power Supply

External adapter, Input: AC 100-240V 50/60 Hz, Output: DC 24V, 2.5A

Power Consumption

50W

Operating Temperature

5°C~40°C

Dimensions (W×D×H)

Unit: 424.27 × 354 × 159.90 mm

Packaged: 590 × 455 × 240 mm

Weight

Net: 5.4 kg, Gross: 8.4 kg

Accessories

WiFi Dongle

Bluetooth Antenna

Power Adapter
